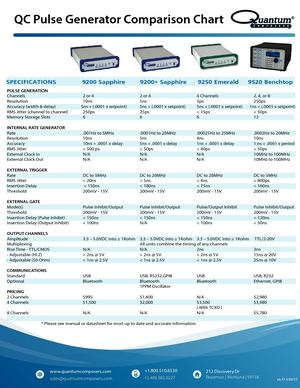

Pulse Generator Comparison Chart

Toll Free (800) 510-6530 Fax (406) 582-0237 Email info@quantumcomposers. com Web www. QuantumComposers. com V1. 1 3/1/12 SPECIFICATIONS 9600+ 9500+ 9520 9530 PULSE GENERATOR COMPARISON CHART PULSE GENERATION Channels 2, 4, or 8 2, 4, or 8 2, 4, or 8 4 or 8... More

Toll Free (800) 510-6530 Fax (406) 582-0237 Email info@quantumcomposers. com Web www. QuantumComposers. com V1. 1 3/1/12 SPECIFICATIONS 9600+ 9500+ 9520 9530 PULSE GENERATOR COMPARISON CHART PULSE GENERATION Channels 2, 4, or 8 2, 4, or 8 2, 4, or 8 4 or 8 Resolution 10 ns 1 ns 250 ps 250 ps Accuracy (width and delay) 10 ns + . 0001 x setpoint 1. 5 ns + . 0001 x setpoint 1 ns + . 0001 x setpoint 1 ns + . 0001 x setpoint RMS Jitter (channel to channel) < 5 ns < 400 ps < 50 ps < 50 ps Memory Storage Slots 6 12 12 24 INTERNAL RATE GENERATOR System Modes Continuous, single shot, burst, duty cycle Rate . 001 Hz to 5 MHz . 0002 Hz to 5 MHz . 0002 Hz to 20 MHz . 0002 Hz to 10 MHz Resolution 10 ns 10 ns 10 ns 10 ns Accuracy 10 ns + . 0001 x period 1. 5 ns + . 0001 x period 1 ns + . 0001 x period 1 ns + . 0001 x period RMS Jitter < 500 ps < 250 ps < 50 ps < 50 ps External Clock In N/A Optional 10 MHz to 100 MHz¹ 10 MHz to 100 MHz¹ External Clock Out N/A Optional 10 MHz to 100 MHz¹ 5 MHz to 40 M Less
